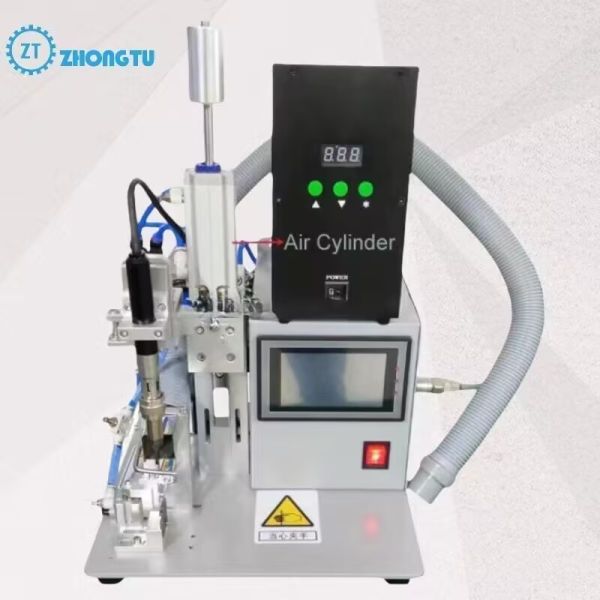

Multi-Function 160W Multi-Function Semi-Automatic Soldering Machine
200W Semi-Automatic Soldering Machine Multi Function Foot Micro Switch Connector Foot Tin PCB/LED/Robot Welding Machine
Product Parameter:
|
Name:
|
Semi-AutomaticSoldering Machine
|
Place of Origin:
|
ShenZhen,China
|
|
Applicable Industries:
|
Manufacturing Plant,SMT,DIP
|
Input air pressure:
|
0.4-0.8Mpa
|
|
Video outgoing-inspection:
|
Provided
|
Weight (KG):
|
20Kg
|
|
Marketing Type:
|
New Product 2024
|
Voltage:
|
110-240V/50HZ Output 24V/2A
|
|
Warranty period:
|
1 Year
|
Dimensions:
|
400*400*500mm
|
|
Warranty of core components:
|
3 Years
|
Solder Wire:
|
0.6~1.5mm solder wire
|
|
Core Components:
|
PLC
|
Temperature Accuracy
|
±3°
|
|
Power:
|
160W
|
Solder Feeding Speed
|
1~50mm/s
|
|
Soldering temperature:
|
0 to 500ºC
|
Repeate Accuracy
|
±0.02mm
|
Product Description:
Semi-automatic soldering machine stands out as a high-efficiency and high-precision soldering solution, specially tailored for the modern electronic manufacturing industry, breaking the limitations of traditional manual soldering and fully upgrading production efficiency and welding quality.
Different from pure manual operation that relies entirely on worker experience, this semi-automatic soldering equipment integrates mechanical transmission and precise tin supply structure. It realizes standardized soldering operation for PCB circuit boards, LED lamp boards, electronic components and small robot parts. Whether it is fine pin soldering, foot tin filling or fixed-point tin welding, the machine can maintain consistent solder joint size, uniform tin amount and stable welding firmness, effectively avoiding common defects such as virtual welding, missing welding and excessive tin in manual operation.
In terms of operational differentiation, the equipment adopts humanized semi-automatic control design. Workers only need to place the workpiece and simply position it, and the machine will automatically complete tin feeding, heating and soldering work. It greatly reduces the technical threshold for operators, does not require long-term professional training, and solves the problem of difficult recruitment and high labor dependence in electronic processing factories. Compared with fully automatic large-scale soldering production lines, it has the advantages of small floor space, flexible switching of product models and low investment cost, which is more suitable for small and medium-sized processing factories, assembly workshops and multi-variety batch production scenarios.
In terms of applicability and durability, the semi-automatic soldering machine is built with industrial-grade materials and stable core components, supporting long-time uninterrupted work. It is widely used in PCB circuit board processing, LED lighting production, intelligent robot accessory welding, household appliance electronic assembly and other industries. With its outstanding advantages of stable precision, cost saving, easy operation and wide compatibility, it has become an essential efficient processing equipment to replace manual soldering and improve overall production competitiveness.
Product Characteristics
-
Superior Working Efficiency
Finish welding procedures swiftly and boost overall productivity. It cuts down working time remarkably compared with traditional manual soldering.
-
Precise Welding Performance
Advanced control system locates solder points accurately. Uniform welding effect effectively lowers defective rate and stabilizes finished quality.
-
User-friendly Operation
Simple training enables quick proficiency. Clear interactive panel and handy control buttons bring effortless daily operation.
-
Durable Operational Stability
Sustains steady working state during long-hour continuous operation, securing consistent welding results all the time.
-
Flexible Compatibility
Fits workpieces in various sizes and profiles, perfectly catering to diversified customized production requirements.
Working Principle
This semi-automatic soldering unit consists of control, heating and mechanical modules. Operators fix workpieces in place. Once activated, the heating unit melts solder material, while mechanical structure delivers solder to designated spots precisely to accomplish welding tasks.
Application Scope
- Electronic Manufacturing: PCB soldering and electronic component assembly
- Electrical Appliance Industry: Internal wiring welding for home and communication devices
- Automotive Electronics: Fabrication and welding of vehicle electronic parts
- Other Industries: Widely applicable in toy production, precision instrument processing and more
Boasting high efficiency, outstanding precision and reliable stability, the equipment delivers dependable welding solutions for diverse industrial production scenarios.
